First Steps with GCP Kubernetes Engine

The past year, we wrote some articles using Minikube as Kubernetes cluster in order to experiment with. In this post, we will take our first steps into Google Cloud Platform (GCP) and more specifically of Kubernetes Engine. Let’s see whether going to the Cloud makes our lives even easier ;-).  We will create a GCP account, create a Kubernetes cluster, deploy our application manually and deploy by means of Helm.

1. Create a GCP Account

First thing to do, is to create a GCP account. Therefore, we navigate to the GCP website. Choose Try GCP for Free where you will be asked to login with your Google account (you will have to create one first if you don’t have one already). After logging in, you will be asked for your credit card details. The latter will only be used for verification, you will not be billed without your explicit approval. When the verification is finished, you are ready to go and you will receive 300 $ of free credits for 12 months in order to experiment with payed services. The GCP Cloud Console, which is your main entry for the GCP services, is accessible here.

2. Create the Kubernetes Cluster

We create a project MyKubernetesPlanet, navigate to the Menu and choose Kubernetes Engine:

Menu - Kubernetes Engine

The following message will be shown when choosing Kubernetes Engine for the first time: Kubernetes Engine API is being enabled. This may take a minute or more.

Next step is to create the Kubernetes cluster by clicking the Create cluster button. A cluster consists at least of one master machine and several nodes.

KE - create cluster

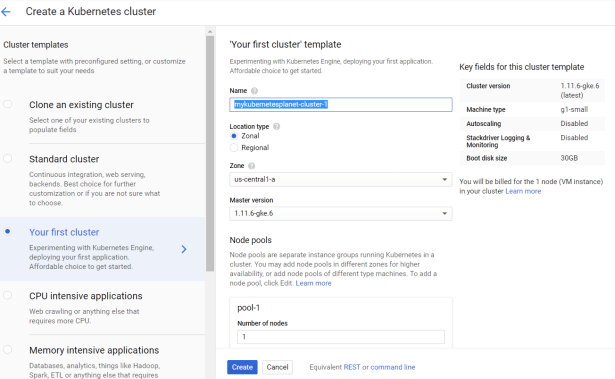

This will bring us to a screen where we can choose from several Cluster templates. We will start modestly and choose the Your first cluster template. We change the name into mykubernetesplanet-cluster-1 and leave the other settings at their default values. In order to finish, we click the Create button.

KE - create cluster settings

That’s it! In just a few minutes, we have an up-and-running Kubernetes cluster. Isn’t that great?!

Open the Cloud Shell at the right top of the page:

KE - Cloud Shell

This will open a shell in the browser.

Enter the following command in order to set credential information:

$ gcloud container clusters get-credentials mykubernetesplanet-cluster-1 --zone us-central1-a
Fetching cluster endpoint and auth data.
kubeconfig entry generated for mykubernetesplanet-cluster-1.

Now we are able to use kubectl commands:

$ kubectl get nodes
NAME                                                   STATUS    ROLES    AGE    VERSION
gke-mykubernetesplanet-cluster-pool-1-83f61445-tpfj    Ready        35m    v1.11.6-gke.6

3. Deploy Manually

In the next section, we will deploy a simple Spring Boot application running in a Docker container. We will use the mykubernetesplanet Docker image which we created in a previous post. The sources are available at GitHub and the Docker image is available at DockerHub. Version 0.0.1-SNAPSHOT contains a hello URL which prints a Hello Kubernetes welcome message, version 0.0.2-SNAPSHOT also prints the host name where the application is running.

3.1 Deploy a Docker Image

By means of Cloud Shell, deploy the mykubernetesplanet:0.0.1-SNAPSHOT Docker image:

$ kubectl run mykubernetesplanet --image=mydeveloperplanet/mykubernetesplanet:0.0.1-SNAPSHOT --port=
8080
deployment.apps "mykubernetesplanet" created

Expose the application publicly:

$ kubectl expose deployment mykubernetesplanet --type="LoadBalancer"
service "mykubernetesplanet" exposed

Retrieve the external IP:

$ kubectl get service mykubernetesplanet --watch
NAME                  TYPE            CLUSTER-IP       EXTERNAL-IP      PORT(S)           AGE
mykubernetesplanet    LoadBalancer    10.47.244.210    35.238.243.92    8080:31838/TCP    48s

The hello URL is accessible via your browser at: http://35.238.243.92:8080/hello

This will return our Hello Kubernetes welcome message: Hello Kubernetes!

3.2 Update a Docker Image

Let’s update our application to version 0.0.2-SNAPSHOT:

$ kubectl set image deployments/mykubernetesplanet mykubernetesplanet=mydeveloperplanet/mykubernet
planet:0.0.2-SNAPSHOT
deployment.apps "mykubernetesplanet" image updated

This will automatically update our application. Browse to the hello URL and the response is now:

Hello Kubernetes! From host: mykubernetesplanet-74ffc8d4b5-7jzz6/10.44.0.10

3.3 Scale Up Our Application

Currently, our application is running on 1 Pod. Let’s scale up our application to 2 Pods:

$ kubectl scale deployment mykubernetesplanet --replicas=2
deployment.extensions "mykubernetesplanet" scaled

Check the number of Pods:

$ kubectl get pods -o wide
NAME                                   READY    STATUS     RESTARTS    AGE    IP            NODE
mykubernetesplanet-74ffc8d4b5-7jzz6    1/1      Running    0           3m     10.44.0.10    gke-mykubernetesplanet-cluster-pool-1-83f61445-tpfj
mykubernetesplanet-74ffc8d4b5-j9jb9    1/1      Running    0           1m     10.44.0.11    gke-mykubernetesplanet-cluster-pool-1-83f61445-tpfj

Also, check the deployment settings which show us the status of our deployment:

$ kubectl get deployment
NAME                  DESIRED    CURRENT    UP-TO-DATE    AVAILABLE    AGE
mykubernetesplanet    2          2          2             2            12m

4. Explore the GCP Console

With Minikube, the dashboard provided us a visual representation of the configuration of our cluster and the ability to change the configuration of deployment, services, etc. The GCP Console provides us similar functionality.

The Cluster section shows us some general cluster information:

KE - cluster section

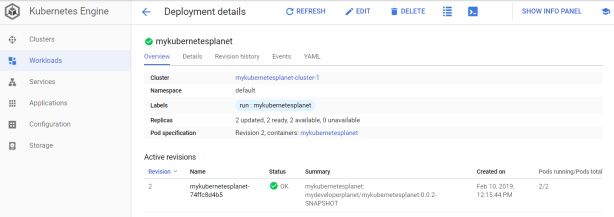

The Workloads section shows us information about our deployment:

KE - workload section

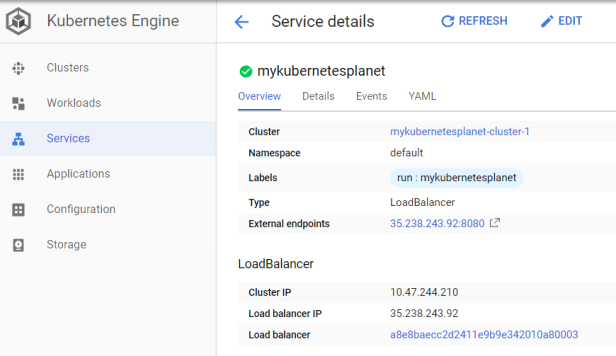

The Services section shows us information about how our application is exposed to the outside world:

KE - services section

After our experiment, we removed the cluster in order to avoid extra charges against our free credits. Navigate to the Cluster and press the recycle bin icon in order to remove the cluster. The actions in this section reduced our free credits with a few cents.

5. Deploy With Helm

In the previous section, we deployed our application manually to the Kubernetes cluster. In a previous post, we explored how we can deploy by means of Helm. It is advised to read part 1 and part 2 before continuing when you are not acquainted with Helm.

The application we will deploy is the same as in the previous section. Additionally, we will make use of the Helm Chart which is available at GitHub.

Before we start, we need to create a Kubernetes cluster just as we did above and set the credential information in Cloud Shell.

5.1 Install Helm

In order to use Helm, we need to install the Helm Client locally in our GCP account and we need to install the Helm Server (Tiller) application into our cluster.

Download the Helm binary:

$ wget https://storage.googleapis.com/kubernetes-helm/helm-v2.12.3-linux-amd64.tar.gz

Extract the zipped file:

$ tar zxfv helm-v2.12.3-linux-amd64.tar.gz

Copy the Helm binary to your home directory:

$ cp linux-amd64/helm .

Your user account must have the cluster-admin role in order to install Tiller:

$ kubectl create clusterrolebinding user-admin-binding --clusterrole=cluster-admin --user=$(gcloud config get-value account)
Your active configuration is: [cloudshell-8955]
clusterrolebinding.rbac.authorization.k8s.io "user-admin-binding" created

A service account must be created for Tiller:

$ kubectl create serviceaccount tiller --namespace kube-system
serviceaccount "tiller" created

Tiller also must be granted the cluster-admin role:

$ kubectl create clusterrolebinding tiller-admin-binding --clusterrole=cluster-admin --serviceaccount=kube-system:tiller
clusterrolebinding.rbac.authorization.k8s.io "tiller-admin-binding" created

Initialize Helm in order to install Tiller into the Kubernetes cluster:

$ ./helm init --service-account=tiller
$ ./helm repo update

This will install Tiller in an insecure manner. For our test this does not really matter, but you should incorporate security when using Tiller in production.

5.2 Deploy the Helm Chart

We will deploy the Helm Chart v0.1.0 which makes use of 1 Pod and is exposed as a NodePort Service.

In Cloud Shell, clone the Helm Chart git repository:

$ git clone https://github.com/mydeveloperplanet/myhelmchartplanet.git

Enter the git directory and checkout the v0.1.0 tag:

$ cd myhelmchartplanet/
$ git checkout v0.1.0

Execute the following command from outside your git repository, the command will search for a directory with the name of the Helm Chart from where it is issued. This will deploy the Helm Chart in a local Chart Repository (username is your GCP account).

$ ./helm package myhelmchartplanet
Successfully packaged chart and saved it to: /home/username/myhelmchartplanet-0.1.0.tgz

Check whether our Helm package is available in the local Chart Repository:

$ ./helm search myhelmchartplanet
NAME                       CHART VERSION    APP VERSION       DESCRIPTION
local/myhelmchartplanet    0.1.0            0.0.2-SNAPSHOT    A Helm chart for Kubernetes

Install the Helm Chart into our Kubernetes cluster:

$ ./helm install myhelmchartplanet

The notes section of the output of the above command allow us to retrieve the IP address and Port:

NOTES:
1. Get the application URL by running these commands:
export NODE_PORT=$(kubectl get --namespace default -o jsonpath="{.spec.ports[0].nodePort}" services smelly-zorse-myhelmchartplanet)
export NODE_IP=$(kubectl get nodes --namespace default -o jsonpath="{.items[0].status.addresses[0].address}")
echo http://$NODE_IP:$NODE_PORT

This returns us the following: http://10.128.0.4:30036

This isn’t the IP address which is accessible from outside the cluster. We have to do some extra things in order to get it working. First, retrieve the external IP address of our Pod:

$ kubectl get nodes --output wide
NAME                                                   STATUS    ROLES    AGE    VERSION          EXTERNAL-IP      OS-IMAGE                              KERNEL-VERSION    CONTAINER-RUNTIME
gke-mykubernetesplanet-cluster-pool-1-e2401053-0v6r    Ready              1h     v1.11.7-gke.4    35.188.104.39    Container-Optimized OS from Google    4.14.89+          docker://17.3.2

Now that we have retrieved our external IP, we need to create a firewall rule to allow TCP traffic to our NodePort:

$ gcloud compute firewall-rules create test-node-port --allow tcp:30036
Creating firewall...⠼Created [https://www.googleapis.com/compute/v1/projects/mykubernetesplanet/global/firewalls/test-node-port].
Creating firewall...done.
NAME              NETWORK    DIRECTION    PRIORITY    ALLOW        DENY    DISABLED
test-node-port    default    INGRESS      1000        tcp:30036            False

The hello URL is accessible via our browser: http://35.188.104.39:30036/hello

This returns the following:
Hello Kubernetes! From host: smelly-zorse-myhelmchartplanet-f4bc8586-jhlp8/10.44.0.10
More information on exposing applications via GCP can be found here.

6. Conclusion

In this post, we explored the capabilities of using GCP Kubernetes Engine. We created a cluster, manually deployed an application and used Helm in order to deploy our application. All of these actions went very smoothly and it took us only a few minutes to get it up-and-running.
